Factory Direct 12/6 Core MPO to LC Fiber Optic Patch Cord with Dual Core for High-Speed Data Transmission

Shenzhen FiberMania Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Factory Direct 12/6 Core MPO to LC Fiber Optic Patch Cord with Dual Core for High-Speed Data Transmission

Certification : RoHS, CE, ISO9001

MOQ : 10

Price : 6.5

Connection Structure : MPO-LC

Material Shape : Round Wire

Allowed Lateral Pressure : 100(N/100mm)<1000(N/100mm)

Allowed Tensile Strength : 100N<1000N

Sheath Material : PVC/LSZH

Connector A : MPO/MTP

Connector B : LC

Polish : APC/PC/UPC

Fiber Type : OS2/OM1/OM2/OM3/OM4/OM5

Core Number : 8~24 Core

Cable Diameter : 3.0mm

MPO Connector IL : ≤0.65dB

LC Connector IL : ≤0.2dB

MPO Connector RL : ≥60dB

LC Connector RL : ≥50dB

Contact Now

Product Description

Our factory-supplied fiber optic patch cords are engineered for reliable high-speed data transmission across LAN, WAN, FTTH, and data center applications.
With customizable options in fiber type (Singlemode G652D/G657A1/A2, Multimode OM1-OM5), jacket material (PVC, LSZH, OFNP), and connector types (LC, SC, FC, ST, MPO/MTP), we ensure flexibility to meet diverse project requirements.

High-performance MPO to LC assemblies are available with UPC or APC polishing for ultra-low insertion loss (≤0.2dB) and excellent return loss, delivering stable performance under harsh conditions.
We offer OEM/ODM service, customizable cable length, diameter, and jacket color, providing cost-effective solutions for telecom, CATV, GPON/EPON, and broadband network deployments.


Features

Bullet Points for Highlights

  • Factory Direct & OEM Service - Custom length, color, diameter, and connector combinations

  • High Compatibility - Singlemode & multimode options, supporting OM1/OM2/OM3/OM4/OM5 standards

  • Low Loss Performance - Insertion loss ≤0.2dB, UPC return loss ≥50dB

  • Versatile Applications - FTTH/FTTB/FTTX, data centers, LAN/WAN, CATV, GPON, EPON

  • Durable & Safe - LSZH/PVC/OFNP jackets, operating temperature −40ºC to +85ºC

Applications
LAN, WAN and
Metro Networks
FTTH project & FTTX Deployments
CATV System
GPON, EPON
Fiber Optic Test Equipment
Data-base Transmit Broadband Net
Specification

Product Name
Fiber Optic Patch Cord
Fiber Type
Single/Multi Mode, G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5
Jacket Material
LSZH/PVC/OFNP/OFRP
Cable Diameter
2.0mm/3.0mm/5.0mm/Customize
Connector Type
SC/LC/FC/E2000/ST/Fast Connector/MPO/MTP
End Face
UPC/APC/PC
Working Wavelength (nm)
850-1300/1310-1550
Insertion Loss (dB)
≤ 0.2dB
Return Loss (dB)
UPC ≥ 50dB
Operating Temperature (ºC)
-40~85
Jacket Color
Yellow/Red/Black/White/Violet/Customize
Quality Testing Program

Factory Direct 12/6 Core MPO to LC Fiber Optic Patch Cord with Dual Core for High-Speed Data Transmission

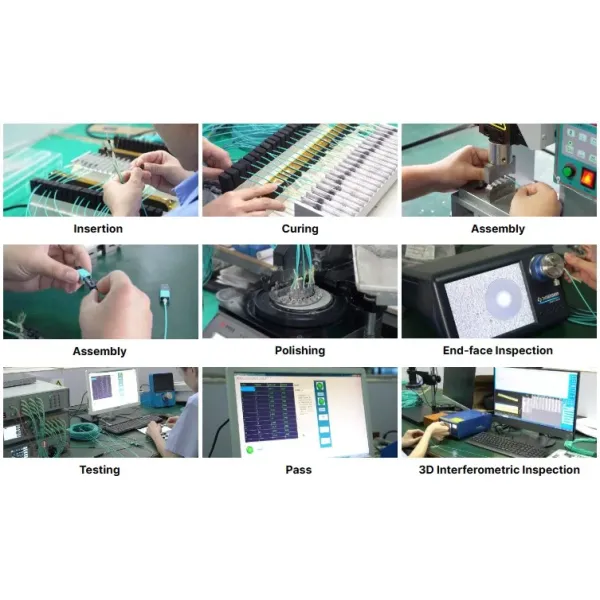

Quality Control in Fiber Optic Cable Manufacturing

At our fiber optic manufacturing facility, strict quality control is applied at every stage of production to ensure reliable performance and long service life. Raw materials are carefully selected and inspected before use, including optical fibers, connectors, and protective jackets. During cable assembly, advanced automated equipment is used to guarantee precise polishing, accurate fiber alignment, and consistent insertion and return loss values.

All products undergo rigorous in-line testing and final inspection, including insertion loss and return loss measurement, 3D interferometer end-face inspection, tensile strength testing, and temperature cycling to verify durability under harsh conditions. Our production process follows international standards such as ISO 9001, IEC, and Telcordia GR-326, ensuring compliance with global telecom and data center requirements.

Through continuous monitoring, traceability systems, and 100% performance testing, we deliver fiber optic solutions that meet or exceed customer expectations, supporting high-speed communication networks with stable and secure connectivity.


Production Equipment

Factory Direct 12/6 Core MPO to LC Fiber Optic Patch Cord with Dual Core for High-Speed Data Transmission
Factory Direct 12/6 Core MPO to LC Fiber Optic Patch Cord with Dual Core for High-Speed Data Transmission
Factory Direct 12/6 Core MPO to LC Fiber Optic Patch Cord with Dual Core for High-Speed Data Transmission
Factory Direct 12/6 Core MPO to LC Fiber Optic Patch Cord with Dual Core for High-Speed Data Transmission
Factory Direct 12/6 Core MPO to LC Fiber Optic Patch Cord with Dual Core for High-Speed Data Transmission
Factory Direct 12/6 Core MPO to LC Fiber Optic Patch Cord with Dual Core for High-Speed Data Transmission

Packaging & Shipping

Each fiber optic patch cord is carefully packed to ensure maximum protection during storage and transportation. Cables are first coiled and secured with protective ties, then sealed in anti-static OPP bags with proper labeling for easy identification. For bulk orders, products are arranged in strong corrugated cartons with internal partitions to prevent bending, crushing, or connector damage. Customized packaging with customer logo and labeling is also available upon request.

To guarantee safe delivery, all shipments are reinforced with moisture-proof and shock-resistant materials, suitable for both air and sea freight. We work with reliable logistics partners including DHL, FedEx, UPS, and international freight forwarders to provide fast and secure worldwide delivery. Tracking information is provided for every shipment, ensuring transparency and timely updates for our customers.

Factory Direct 12/6 Core MPO to LC Fiber Optic Patch Cord with Dual Core for High-Speed Data Transmission
Factory Direct 12/6 Core MPO to LC Fiber Optic Patch Cord with Dual Core for High-Speed Data Transmission
FAQ

Product Q&A for Fiber Optic Patch Cord

Q1: Are you a manufacturer or trading company?
A1: We are a professional fiber optic cable manufacturer with over 10 years of production experience. All patch cords are factory direct with OEM/ODM customization available.

Q2: Can the fiber type and connector be customized?
A2: Yes, we offer Singlemode (G652D, G657A1/A2) and Multimode (OM1-OM5) fibers, with LC, SC, FC, ST, MPO/MTP, and E2000 connectors. Both UPC and APC polishing are supported.

Q3: What is the typical insertion loss and return loss of your patch cords?
A3: Our cables feature low insertion loss ≤0.2 dB and high return loss ≥50 dB (UPC) / ≥60 dB (APC), ensuring stable and efficient transmission.

Q4: What jacket materials are available?
A4: Standard options include LSZH, PVC, and OFNP. Custom colors and diameters (2.0mm, 3.0mm, 5.0mm) can also be provided upon request.

Q5: Do you provide sample orders for testing?
A5: Yes, samples are available to test quality before bulk order. Contact us for details and lead time.

Q6: How do you ensure product quality?
A6: Every patch cord undergoes 100% performance testing, including insertion/return loss, end-face inspection, and mechanical reliability checks, in compliance with ISO and IEC standards.

Q7: What are the applications of your fiber optic patch cords?
A7: They are widely used in FTTH/FTTX projects, data centers, LAN/WAN networks, CATV systems, GPON/EPON deployments, and telecom backbone connections.

Q8: What is the delivery time for bulk orders?
A8: Standard lead time is 5-10 working days depending on order quantity. For urgent requirements, we provide expedited production service.
